Technology - Heavy
Loader:
At first, the oversized inertia separation principle will allow to filler over 75% of heavy paints.
Catcher:
Then, the Catcher will stop 24% of the extra paint thanks to its polyester filter.
Perfector:
And finally, the Perfector will trap the remaining particles to achieve a 99,8% filtration efficiency.

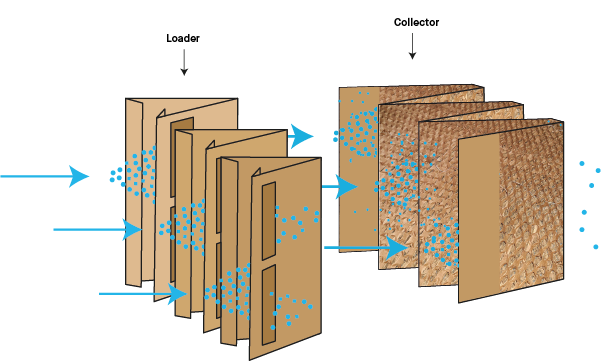

Technology - Medium
Loader:
As a first filtration step, a thinest inertia separation principle will filter the biggest prayed paint particles.
Collector:
SprayMesh CAPACITY or PREMIUM fixed on a strong funnel shaped cardboard structure will create deep deposit areas and allow a higher efficiency.
Technology - Light

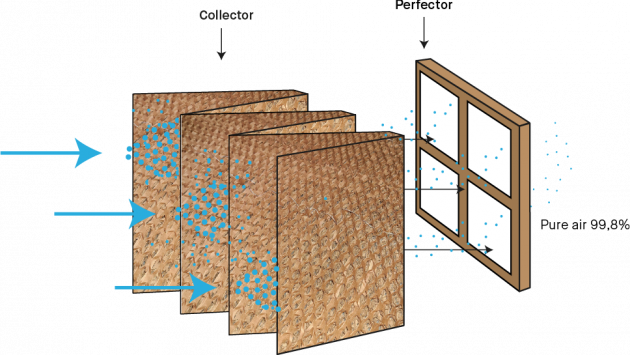

Collector:
Spraymesh CAPACITY paint collector ; 8 layers of woven paper mesh fixed on a strong cardboard structure to create deep deposit areas.
Perfector:
And finally, the Perfector will trap the remaining particles to achieve a 99,8% filtration efficiency. Available in 2 different grades of paint particles filtration.

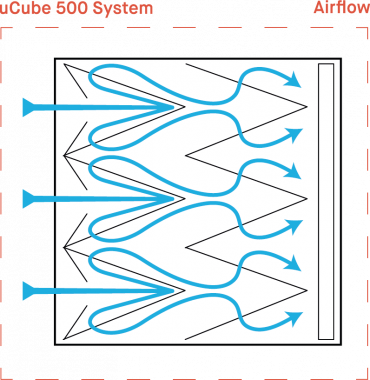

Airflow System
The cube is based on the proven “inertia separation” principle.
The internal V-shaped filter cavities allow the creation of a venturi effect and force the flow of particulate-laden air to change direction.
Thanks to it we get the most optimal air flow and maximum possible filtration efficiency.
